OpenClawBrain: Learned Graph Traversal for Retrieval Routing

# Build a brain
python3 -m openclawbrain init --workspace examples/sample_workspace --output /tmp/brain

# Check state health
python3 -m openclawbrain doctor --state /tmp/brain/state.json
# ... summary includes 8/9 checks

# Query (text output includes node IDs)
python3 -m openclawbrain query "how do I deploy" --state /tmp/brain/state.json --top 3 --json

# Teach positive outcome
python3 -m openclawbrain learn --state /tmp/brain/state.json --outcome 1.0 --fired-ids "deploy.md::0,deploy.md::1"

# Inject correction
python3 -m openclawbrain inject --state /tmp/brain/state.json \
  --id "fix::1" --content "Never skip CI for hotfixes" --type CORRECTION

Abstract

Standard retrieval, including lexical or embedding similarity matching, selects chunks independently per query and does not learn persistent routing over multi-step trajectories from outcome feedback. OpenClawBrain provides value on two axes: retrieval accuracy and context efficiency. It augments query seeding with a learned graph router over document chunks where nodes are chunks and edges are mutable signed pointers. For accuracy, graph structure enables better retrieval than flat embedding-only retrieval on repeated procedural paths. For efficiency, repeated outcomes compress context from 30 nodes to 2.7 in deployment simulation (91% reduction) and from 52--66KB to 3--13KB per query in production via trajectory learning.

Feature highlights

• Two-axis framing: graph structure for retrieval accuracy and learning for repeated-task context compression.
• Real-time corrections via logged fires (`--chat-id`) and same-turn correction flow.
• Optional embedder and generation callbacks for user environments; no assumption of a single provider.
• TEACHING and DIRECTIVE injection for positive knowledge and instructions.
• Budget-based traversal termination with hard limits for hops, fired-node count, and context budget.

What's new in v11.2

• Constitutional anchors now regulate maintenance: constitutional (never decay/prune/merge), canonical (slow decay), overlay (default).
• Incremental file sync with `openclawbrain sync` is documented for file-change-driven re-embedding.
• Daily note compaction with `openclawbrain compact` is documented for file footprint reduction.
• Two-timescale architecture is explicit: per-query learning plus periodic maintenance operators.
• Maintenance now includes structural runs and reports from 15 sims and 236 tests.
• Persistent worker daemon (openclawbrain daemon) keeps state hot in memory — 504ms queries on production brains.
• Bugfix: save_state() no longer silently overwrites embedder metadata.
• Bugfix: rebuilds now preserve injected CORRECTION/TEACHING nodes.
• 246 tests, 17 CLI commands, 4 production brains (including CormorantAI).

1. The Problem

Memory retrieval should be about behavior selection, not nearest-neighbor matching. Every query should ask: which sequence of dependencies, safeguards, and operations is useful now, given previous outcomes? A static similarity index cannot determine this.

OpenClawBrain treats memory as a decision surface: a directed, weighted graph where edges represent route-level transitions. We evaluate behavior through simulations with only code-backed evidence and replace broad benchmarking claims with a note when those data are not in this suite.

2. The Graph

OpenClawBrain is a directed graph of chunk nodes with typed edges carrying bounded scalar weight. Implementations may store metadata (for example, edge kind and summaries) alongside the graph state.

from dataclasses import dataclass, field
from typing import Any

@dataclass
class Node:
    id: str
    content: str
    summary: str = ""
    metadata: dict[str, Any] = field(default_factory=dict)

@dataclass
class Edge:
    source: str
    target: str
    weight: float
    kind: str
    summary: str = ""
    metadata: dict[str, Any] = field(default_factory=dict)

A query creates seed nodes \(\mathcal S(q)\) and initial frontier. Fired nodes are the nodes visited in this traversal; only fired nodes are eligible for read/execution.

Tiering uses explicit precedence on each step: reflex, habitual, inhibitory, then dormant. Inhibition is a hard veto over support, not a soft penalty.

The graph is deliberately sparse in active retrieval because routing should remain selective. Dormant edges are not deleted; they can recover if feedback returns.

def route_fn(query, candidate_targets):
    """Policy hook for selecting habitual actions."""

    ...
    return selected_targets


def choose_next(current_node, graph, route_fn, query, visited):
    edges = graph.outgoing(current_node)
    candidates, suppressed = [], set()
    for edge in edges:
        if edge.weight <= -0.01:
            suppressed.add(edge.target)
            continue
        if edge.weight >= 0.6 and edge.target not in visited:
            candidates.append((edge.target, edge.weight))
        if 0.2 <= edge.weight < 0.6 and edge.target not in visited:
            candidates.append((edge.target, edge.weight))

    habitual = [t for t, w in candidates if 0.2 <= w < 0.6]
    auto = [t for t, w in candidates if w >= 0.6]
    selected = route_fn(query, habitual) if route_fn else auto
    return [n for n in auto + selected if n not in suppressed and n not in visited]

3. Learning Rule and Dynamics

A production-oriented objective is:

\[\min_{W}\; \mathbb{E}_{q\sim\mathcal{D}}[\mathrm{tokens}(F(q;W))] \;\text{s.t.}\; \mathbb{E}_{q\sim\mathcal{D}}[\tilde z(q)]\ge \rho,\; |F|\le B,\]

\[\tilde z\in\{0,1\},\quad z=2\tilde z-1\in\{-1,+1\}\]

In plain terms: minimize context tokens while maintaining retrieval success, with signed outcome \(z\) used in updates.

How the Policy Gradient Actually Works

For a fixed-node softmax policy, each chosen action increases its own logit and decreases competing logits in proportion to their current probability mass.

The accessible math

\[\pi_W(a\mid s=i)=\frac{\exp\bigl((r_{ia}+w_{ia})/\tau\bigr)}{\sum_{j\in\mathcal{N}(i)\cup\{\texttt{STOP}\}}\exp\bigl((r_{ij}+w_{ij})/\tau\bigr)}\]

At node \(i\), write \(\boldsymbol{\pi}_i\) for the full action distribution and \(\mathbf{e}_a\) for the one-hot vector at the chosen action. The true score function is:

\[\nabla \log \pi_W(a\mid i)=\frac{1}{\tau}(\mathbf{e}_a-\boldsymbol{\pi}_i)\]

• “what I chose” minus “what I expected to choose”: the term \(\mathbf{e}_a-\boldsymbol{\pi}_i\) compares action intent to policy mass.
• Chosen action: update size is \((1-\pi(a\mid i))/\tau\), so surprises get bigger updates.
• Non-chosen actions: each gets \(-\pi(j\mid i)/\tau\), i.e., proportional suppression.
• Conservation: component sums are zero, so this is redistribution, not global inflation.

Numerical example

Suppose one node has three outgoing edges plus STOP, with \(w = [0.5, 0.3, -0.2, 0.0]\), \(\tau=1\), and chosen action \(A\).

With \(z=+1\), baseline \(b=0\), \(\eta=0.1\), \(\gamma=1\), and \(\tau=1\):

True PG reallocates probability mass: the +0.066 gain on A is exactly offset by -0.066 across alternatives. The heuristic only adds to A and drifts the local mass upward.

Why this update matters

• The old heuristic is sign-correct but magnitude-wrong: it keeps direction on easy cases but over-updates too aggressively.
• True PG naturally stops updating when the policy is certain: \(\pi(a\mid i)\approx 1\Rightarrow 1-\pi(a\mid i)\approx 0\).
• True PG gives a usable negative signal too: on bad outcomes, it pushes alternatives up, not just penalizes the chosen edge.
• Temperature \(\tau\) scales all magnitudes via \(1/\tau\), matching exploration sharpness to learning step size.

Connection to Gu (2016): full-trajectory credit

The corrected part is not just “use a better formula at one step.” We sum gradients across the full trajectory, not just the last transition:

\[\Delta W=\eta(z-b)\sum_{\ell=0}^{T}\gamma^\ell\nabla_W\log\pi_W(a_\ell\mid s_\ell)\]

Updates are applied to every trajectory step, including early hops, when only terminal outcome is observed.

In practical deployments, a strong early hop can still receive positive credit when a later branch fails; a bad mid-route branch can receive negative credit without requiring extra internal simulation.

In addition to policy updates, traversal updates include decay and bounded autotuning. This keeps edge weights interpretable and keeps the graph reusable across changing workloads.

Traversal uses episode-local attenuation for repeated loops. For edge \(e\), within-episode effective weight is:

\[\tilde w = w\cdot \lambda^k,\quad \lambda\in(0,1),\ k=\text{reuses in episode}\]

A separate visit-penalty factor can be modeled as \(\tilde w \leftarrow \tilde w - \alpha v_j\) with \(\alpha\) separate from \(\lambda\).

When an edge is reused repeatedly in one route, its effective influence is reduced, reducing lock-in while preserving recoverability.

4. Two-Timescale Architecture

OpenClawBrain runs on two explicit timescales: online learning per query, and scheduled structural maintenance.

Online learning (fast loop)

Each query performs:

query → traverse → log trace → feedback → learn

• Per-query updates use apply_outcome() or apply_outcome_pg().
• Learned edges steer next-hop probabilities and inhibitory routing.
• No structural mutations occur on the request path.

Maintenance (slow loop)

Periodic maintenance runs structural operators outside request latency:

run_maintenance()

• health
• decay
• merge
• prune
• compact

run_maintenance() is scheduler-agnostic (cron, timer, CI, ad-hoc orchestration).

Persistent worker (openclawbrain daemon)

For production, openclawbrain daemon --state PATH starts a long-lived process that loads state once and accepts JSON-RPC over stdin/stdout. Eliminates per-call state reload (~100-800ms savings).

Production timing (Mac Mini M4 Pro, OpenAI embeddings):

• MAIN (1,158 nodes): 397ms embed + 107ms traverse = 504ms
• PELICAN (582 nodes): 634ms embed + 51ms traverse = 685ms
• BOUNTIFUL (285 nodes): 404ms embed + 27ms traverse = 431ms

Constitutional anchors

• constitutional: never decay, never prune, never merge.
• canonical: slower decay and merge-gated behavior.
• overlay: default operational behavior for normal learned nodes.

Context Lifecycle

Files (edit) → Sync (re-embed) → Graph (learn) → Maintain (prune/merge) → Compact (shrink files)

This matches the operational flow used in setup-runbook automation.

4. Simulation Results

The following results are reproducible from 15 scripts in openclawbrain/sims and their generated figures.

4.1 Deploy Pipeline Compilation

Axis: Context efficiency (Axis 2). The 4-hop deployment chain reaches reflex (1.0) by Q10 and stays there, turning procedural traversal into near-reflex execution.

Measured: in 50 repeated deploy-route queries, edges move from habitual to reflex regime, with final weights at the reflex threshold.

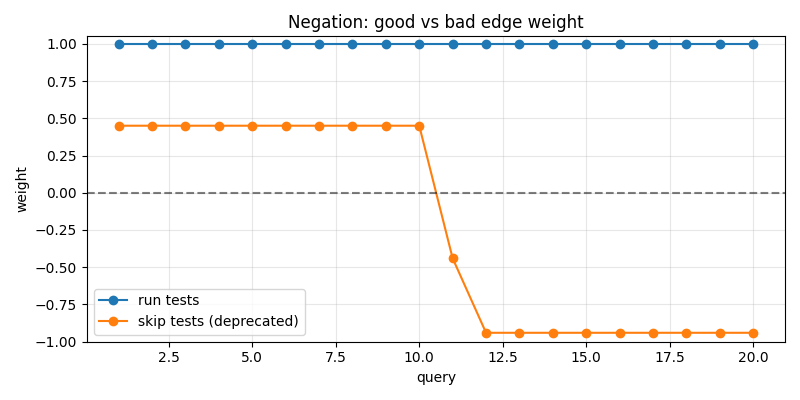

4.2 Negation Learning

Axis: Retrieval accuracy (Axis 1). Bad edge reaches -0.940 while the good edge remains 1.0, so stale wrong guidance is suppressed.

Measured: inhibitory learning reaches \\(-0.940\\) on a deprecated path under negative outcomes.

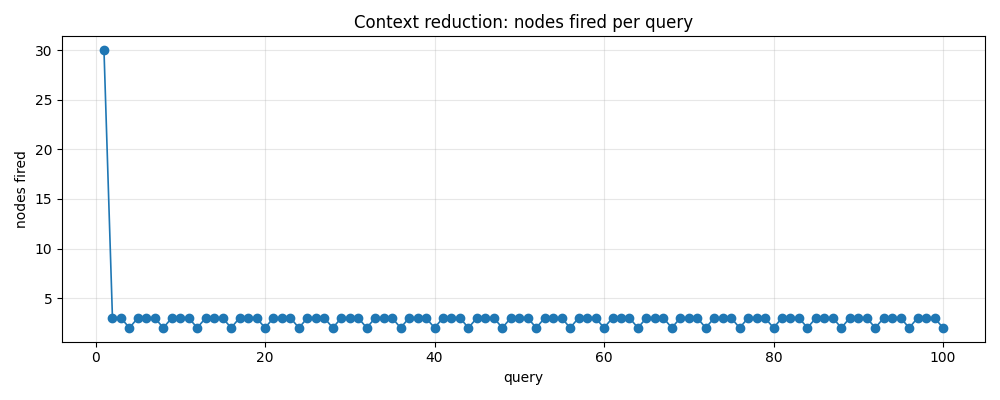

4.3 Context Reduction

Axis: Context efficiency (Axis 2). Nodes fired drop from 30 on Q1 to 2.7 on average (Q91-100), a 91% reduction.

Measured: context consumption in a focused workload drops from 30 nodes on first query to 2.7 nodes on average in the final 10 queries.

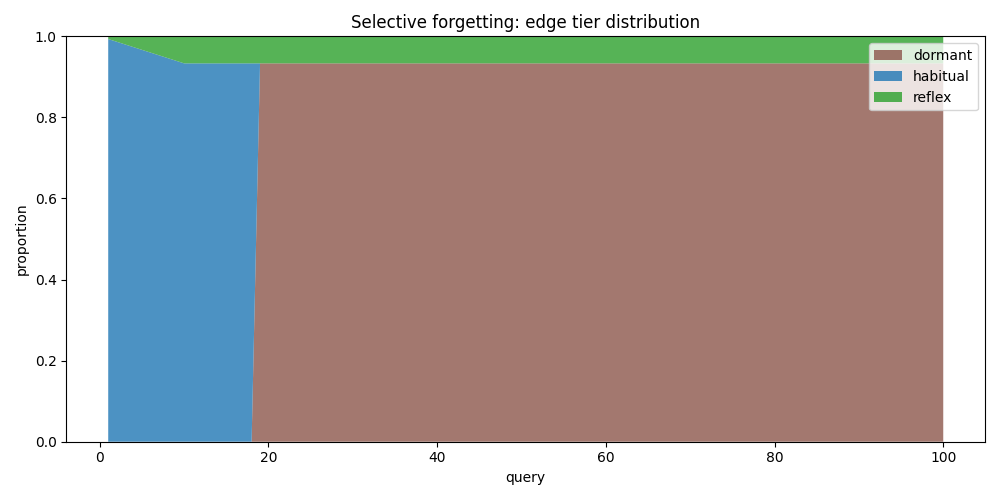

4.4 Forgetting Dynamics

Axis: Context efficiency (Axis 2). Selective forgetting reaches 93.3% dormant by Q25, leaving 6.7% active.

Measured: selective forgetting produces high dormant mass after adaptation: 93.3% dormant by 100 queries.

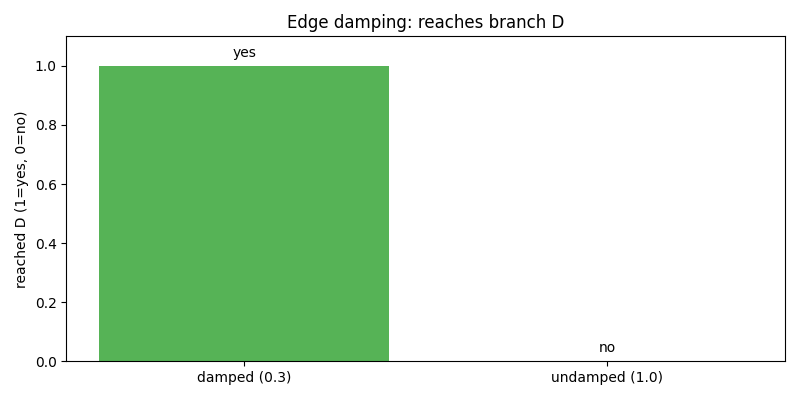

4.5 Edge Damping vs Undamped Traversal

Axis: Retrieval accuracy (Axis 1). Without damping, the toy cycle loops; with \\(\lambda=0.3\\), the target is reached in 4 hops.

Measured: with damping \\(\lambda=0.3\\), a branch to a target is reached; with undamped dynamics \\(\lambda=1.0\\), the traversal loops.

4.6 Domain Separation and Bridges

Axis: Retrieval accuracy (Axis 1). Only 5 cross-file edges emerge across 2 clusters, limiting irrelevant-domain bleed-through.

Measured: mixed query patterns induce sparse cross-file connectivity. The simulation produces 5 cross-file edges and two major clusters.

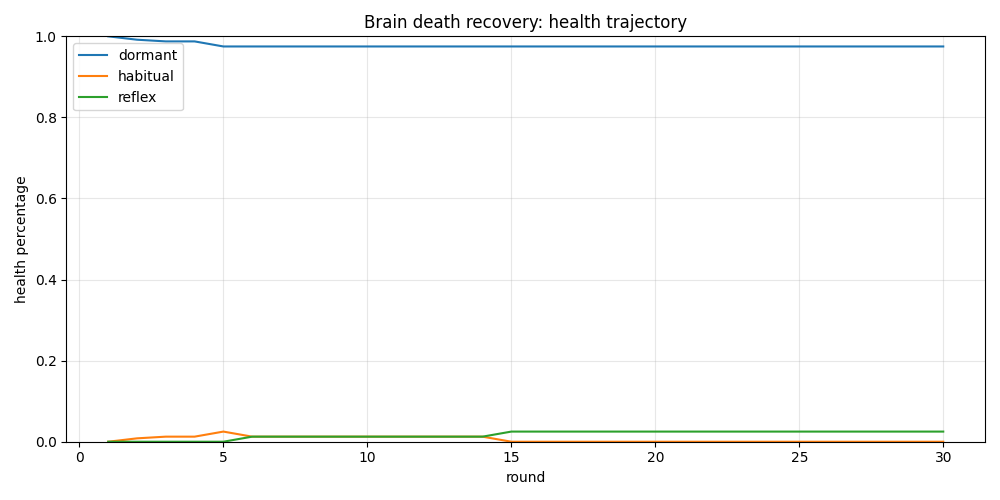

4.7 Brain-death Recovery

Axis: Context efficiency (Axis 2). Recovery controls detect dormant-heavy states (>90%) and return the graph to recoverable routing dynamics.

Measured: in recovery conditions with aggressive decay, the autotune diagnostics identify and correct unhealthy dynamics. Dormancy is detected at \\(>90\%\\) and the system proposes control updates.

4.8 Individuation Across Workloads

Axis: Context efficiency (Axis 2). Same workload starts with shared structure; after updates, 27 edges differ by more than 0.05.

Measured: starting from identical graph state, different workloads produce structurally distinct outcomes. The number of edges that differ by more than 0.05 after 50 queries is 27.

4.9 Simulation Protocol

All eight reported studies share a single reproducibility convention: fixed random seeds within each script, one output JSON file per script, and one dedicated figure output generated from that JSON.

One command runs all 15:

cd openclawbrain/sims
python generate_figures.py
python run_all.py

Result claims in this page are extracted from the stored JSON records and are intentionally limited to fields that can be traced to deterministic outputs.

4.10 Provenance of the Claim Set

4.11 New Results (Ablations)

Benchmark comparison (expanded ablations)

This benchmark run includes 45 queries and covers baseline baselines and ablations, including static_traverse and no_inhibition.

4.14 Structural Maintenance Results

OpenClawBrain separates per-query learning from periodic structural maintenance.

Maintenance runs through health → decay → merge → prune and can be scheduled with any workflow.

All maintained brains use OpenAI text-embedding-3-small (1536-dim).

4.14.1 Merge Compression

Merge compression reduced active nodes from 40 to 32 and fired value from 2.0 to 1.0 (50% reduction).

4.14.2 Prune Health

Prune-health dropped edges from 870 to 24, while dormant moved from 98% to 29% and traversal still worked after prune.

4.14.3 Full Maintain vs Edge-Only (200 queries)

Full maintenance is 12% cheaper in total context cost than edge-only (1,815 → 1,598).

4.14.4 Production Maintenance (first cycle)

Merged nodes are larger due to context combination, so context chars do not always shrink; routing becomes materially sparser.

Maintenance schedule and configuration is documented in docs/setup-guide.md.

4.12 External Benchmarks: MultiHop-RAG (n=1000)

Axis: Retrieval accuracy (Axis 1). Cold traversal is +7.7% over embedding on full hit (0.6430 vs 0.5660), while learning drops to 0.4770 (-16.6% at 1000).

Corpus: dataset facts and paragraphs from MultiHop-RAG facts. For each query, labels define evidence paragraphs to retrieve. Method set: embedding top-k and three OpenClawBrain variants with cold and online updates.

Cold traversal improves immediate evidence recall over embedding-only retrieval. Online updates on a non-repeating stream reduce final full-hit rate, which matches the repeated-task assumption for sustained gains.

4.13 External Benchmarks: HotPotQA distractor (n=500)

Axis: Retrieval accuracy (Axis 1). Cold traversal improves SP@5 by +33.6% (0.9700 vs 0.6340); learning is roughly neutral over early checks.

Corpus: dataset passages and labeled evidence for distractor suppression evaluation.

Cold traversal is strongest at low and late checkpoints, while learned variants can improve early checkpoints and weaken under longer, diverse query streams.

Axis framing: These external benchmarks are Axis 1 only. They use unique, non-repeating queries, so Axis 2 (repetition-driven context compression) is not testable.

5. Production Deployment

Three production brains run on a Mac Mini M4 Pro, each built from workspace markdown files, session replay, and a learning database of human corrections:

Axis framing: Context efficiency on Axis 2. Startup context moved from 52--66KB to 3--13KB per query through on-demand graph routing after repeated task use.

All 2,004 nodes have real OpenAI text-embedding-3-small embeddings (1536-dim). Existing embeddings are cached and reused across rebuilds — only new nodes require API calls.

Learning corrections (259 active) are injected as first-class graph nodes and connected to relevant workspace nodes via cosine similarity. This means the graph retrieves not just workspace content but how to avoid past mistakes.

6. How It Compares

Positioning against related systems

MemGPT: a runtime memory operating-system stack, while OpenClawBrain is a routing layer. Think of it as a graph policy for what to retrieve and feed next, not a replacement memory system.

Reflexion: textual reflection over time, whereas OpenClawBrain stores learned routing decisions as numeric edge weights over a graph.

Self-RAG: generation-level self-critique and revision; OpenClawBrain is retrieval-routing-level learning that shapes traversal before generation.

Related family: bandit-style routing and learning-to-rank ideas motivate the same principle in other forms — choose actions with feedback; OpenClawBrain applies it inside a sparse document graph with explicit STOP and edge-level inhibition.

7. Limitations and Conclusion

Limitations

1. The current paper page presents the 15 reproducible simulation classes listed above, including ablations and robustness checks.
2. Routing quality depends on seeding quality: poor embeddings or weak seeders produce weak starting routes, and we do not yet have a formal open benchmark gap-filling procedure for seeding failure modes.
3. Absolute magnitudes depend on synthetic setup and parameter choices in each simulator.
4. Autotune and traversal behavior should still be treated as adaptive heuristics for further real-workload calibration.

Conclusion

OpenClawBrain improves retrieval accuracy through graph-structured traversal (+7.7% on MultiHop-RAG, +33.6% on HotPotQA versus embedding-only baselines) and compresses context on repeated tasks through trajectory-level learning (30→2.7 nodes in simulation, 52--66KB→3--13KB in production).

The true REINFORCE policy gradient keeps edge weights bounded (53.68 vs 71.20 total weight) and suppresses distractor edges more effectively (0.3124 vs 0.4226 average distractor weight). Benefits depend on graph structure and repeated-query patterns; with diverse one-off queries, learning can add little or degrade accuracy.

References

1. Gu, J. (2016). Corrected policy-gradient update rules for reinforcement learning. UCLA Econometrics Field Paper. [Background and derivation]
2. Gu, J. (2016). Corrected policy-gradient update for recurrent action sequences. UCLA Econometrics Field Paper. [PDF]
3. Williams, R. J. (1992). Simple statistical gradient-following algorithms for connectionist reinforcement learning. Machine Learning, 8(3–4), 229–256.
4. Collins, A. M. & Loftus, E. F. (1975). A spreading-activation theory of semantic processing. Psychological Review, 82(6), 407–428.
5. Graves, A., Wayne, G. & Danihelka, I. (2014). Neural Turing Machines. arXiv:1410.5401.
6. Graves, A. et al. (2016). Hybrid computing using a neural network with dynamic external memory. Nature, 538, 471–476.
7. Park, J. S. et al. (2023). Generative agents: Interactive simulacra of human behavior. UIST 2023.
8. Wang, G. et al. (2023). Voyager: An open-ended embodied agent with large language models. arXiv:2305.16291.
9. Packer, C. et al. (2023). MemGPT: Towards LLMs as operating systems. arXiv:2310.08560.
10. Shinn, N. et al. (2023). Reflexion: Language agents with verbal reinforcement learning. NeurIPS 2023.
11. Yao, S. et al. (2023). ReAct: Synergizing reasoning and acting in language models. ICLR 2023.
12. Asai, A. et al. (2024). Self-RAG: Learning to retrieve, generate, and critique through self-reflection. ICLR 2024.
13. Sun, J. et al. (2024). Think-on-Graph: Deep and responsible reasoning of large language model on knowledge graph. ICLR 2024.
